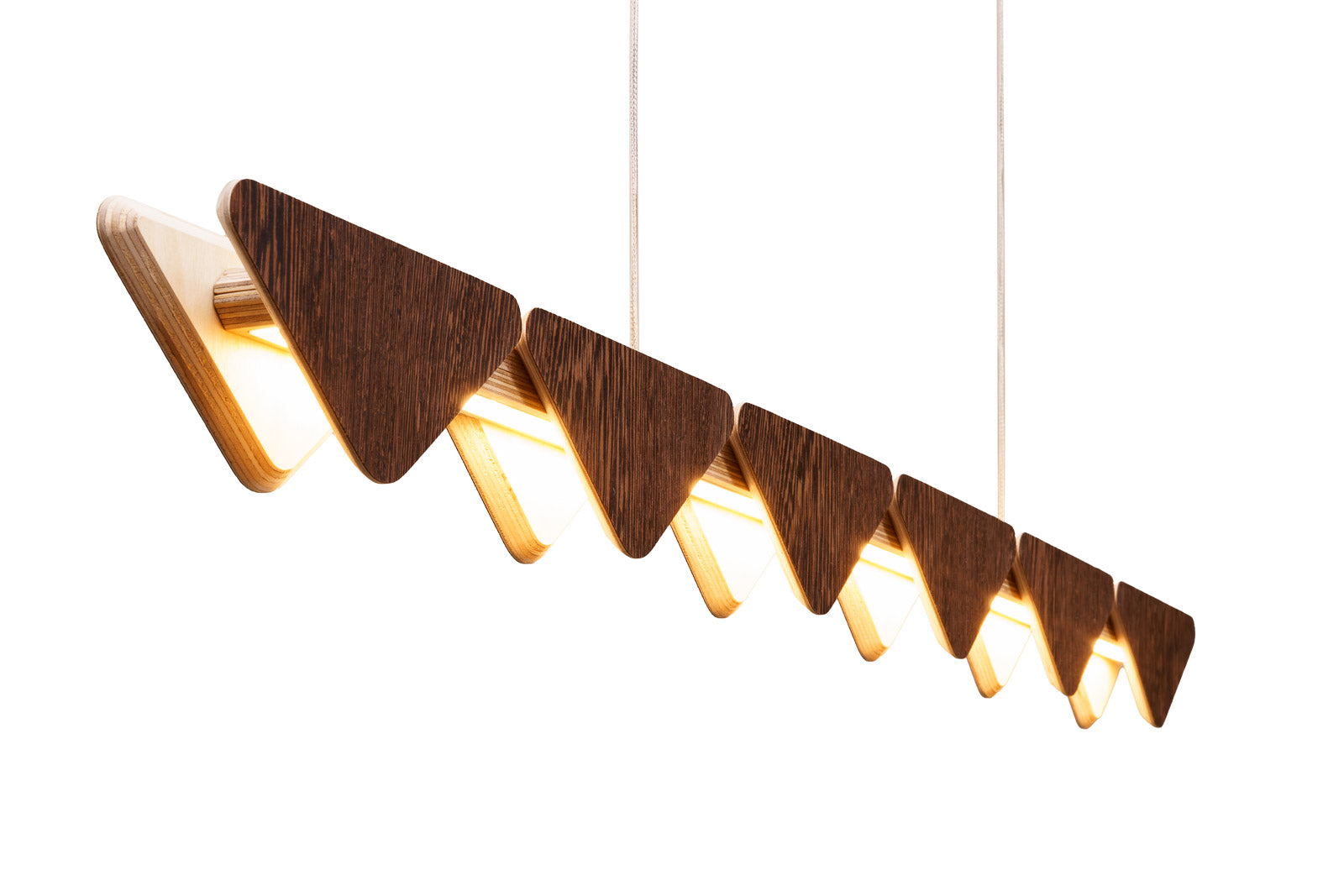

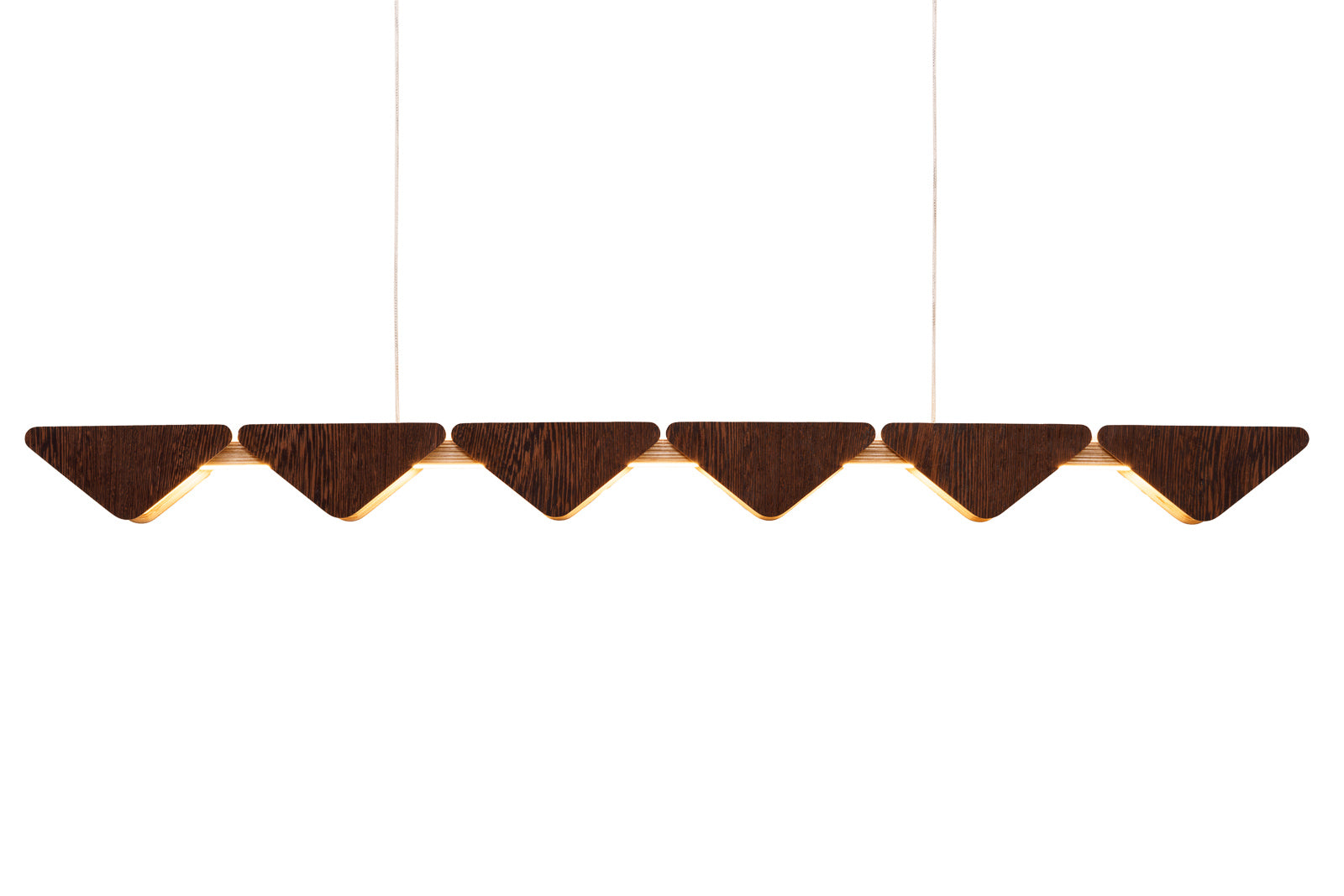

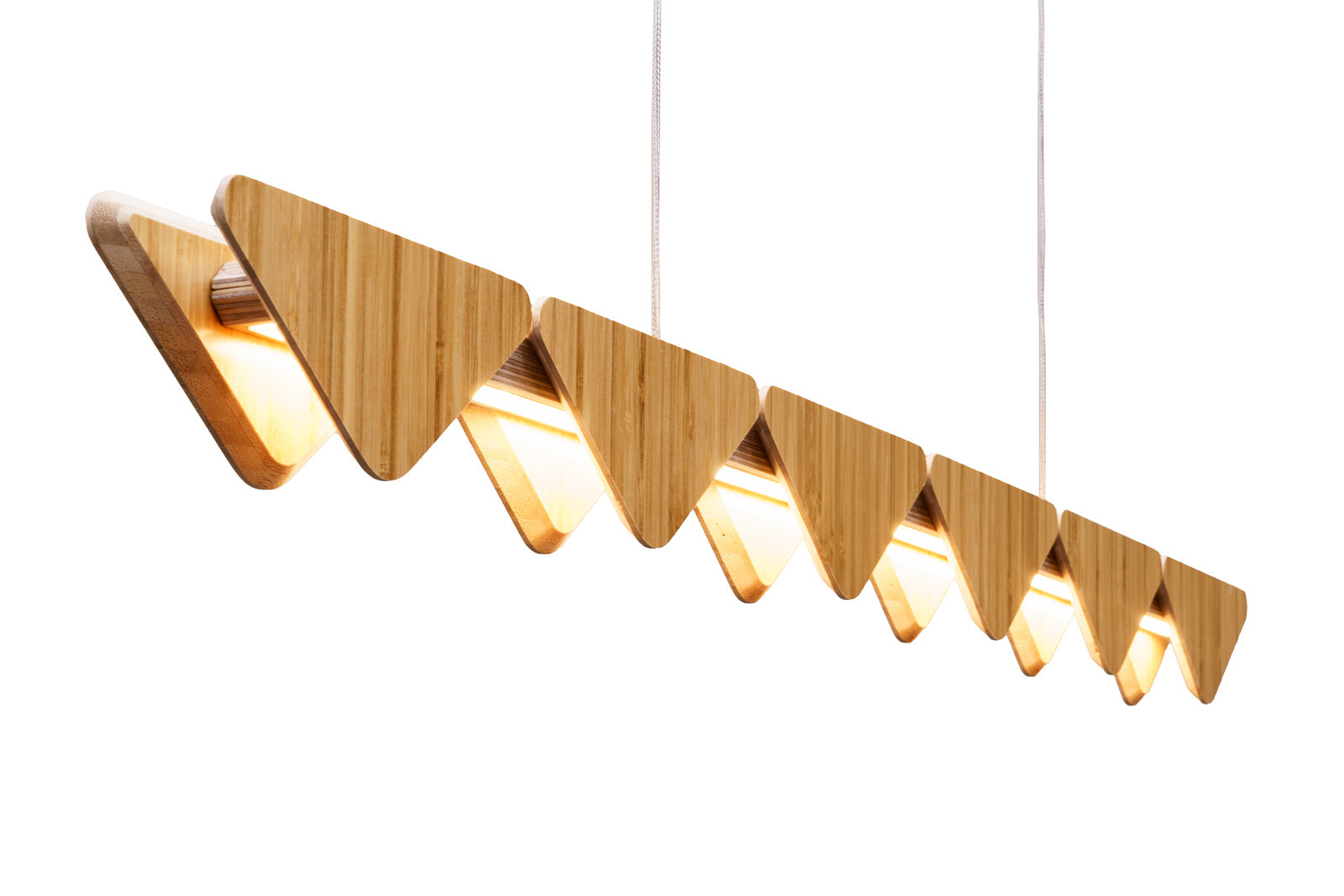

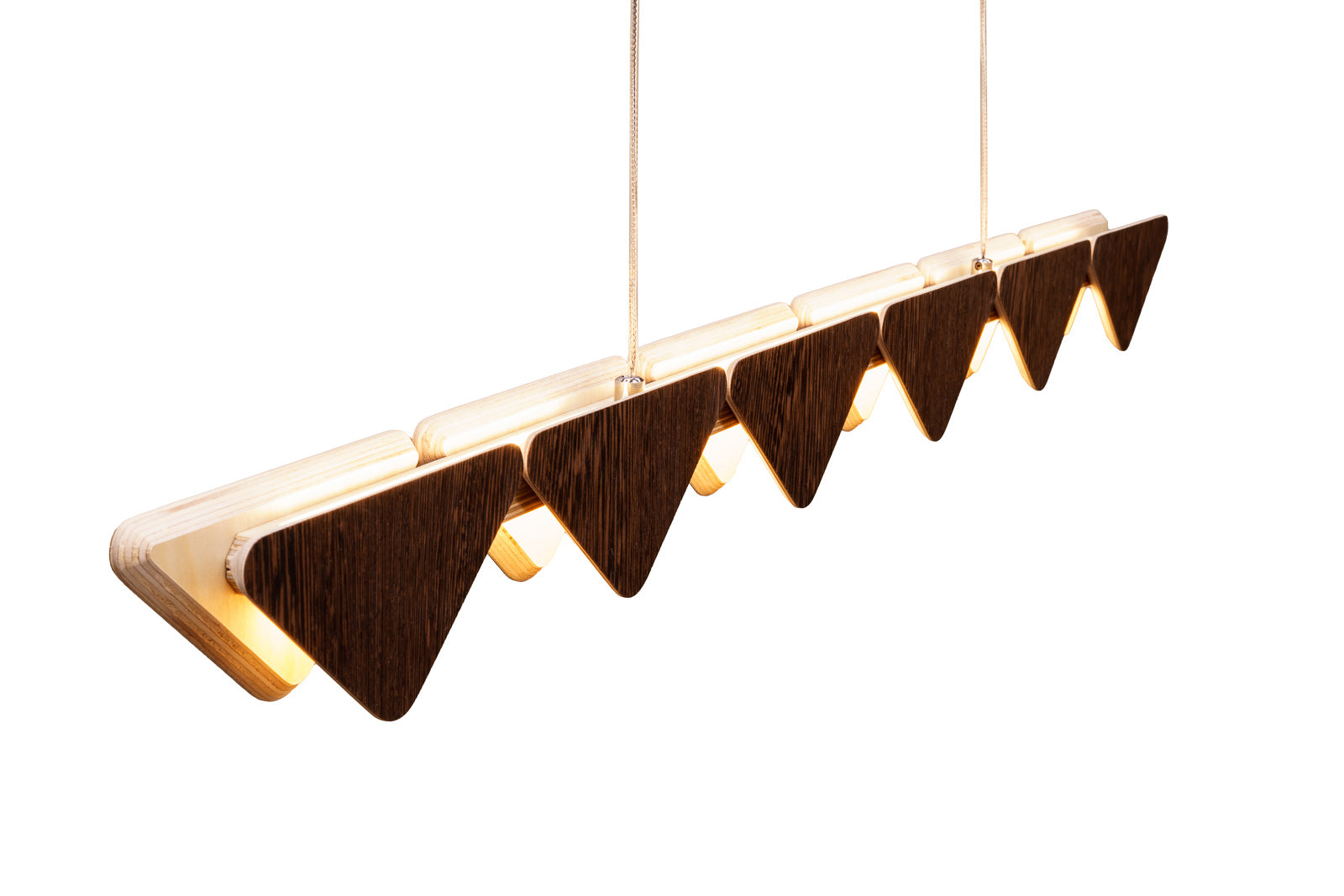

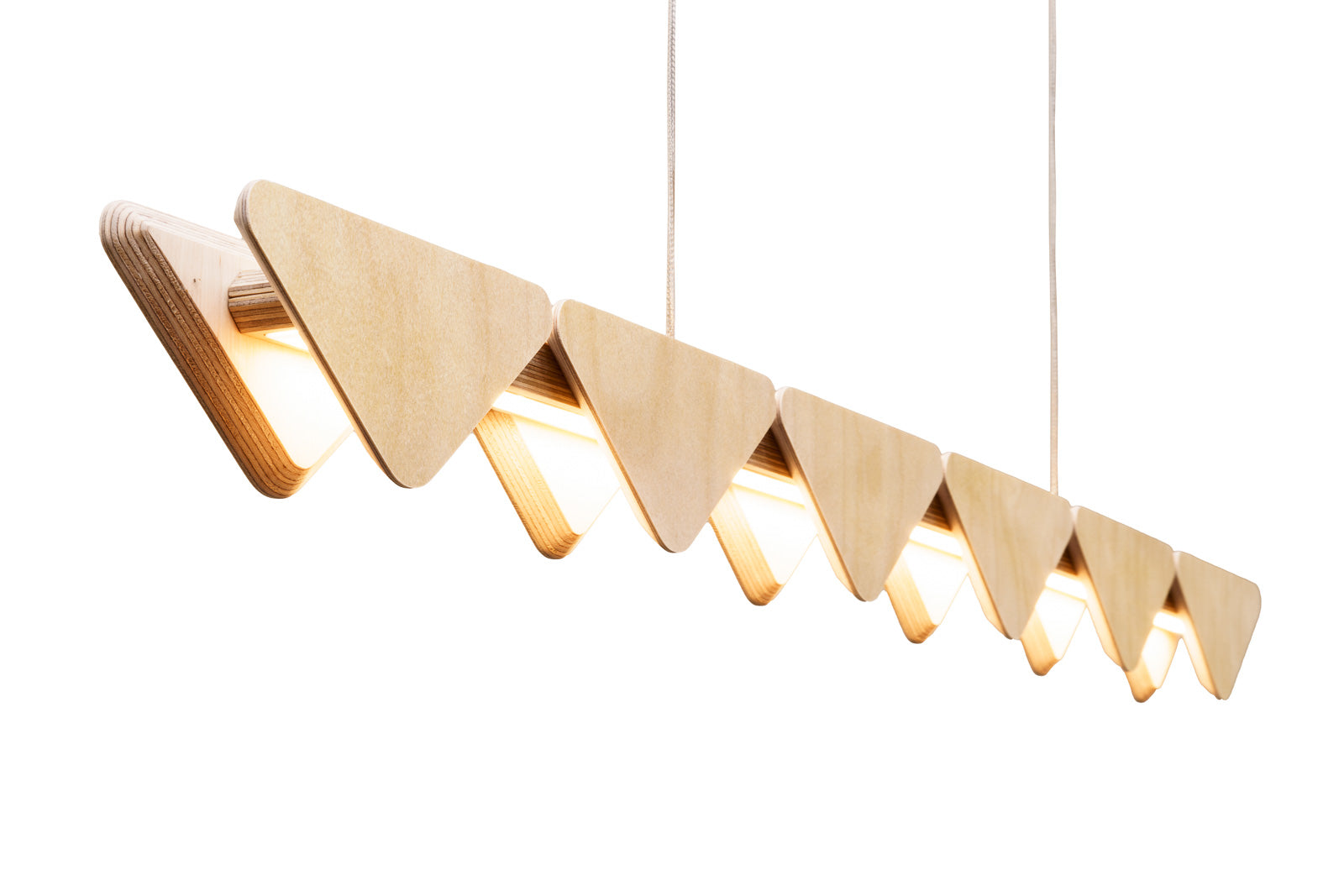

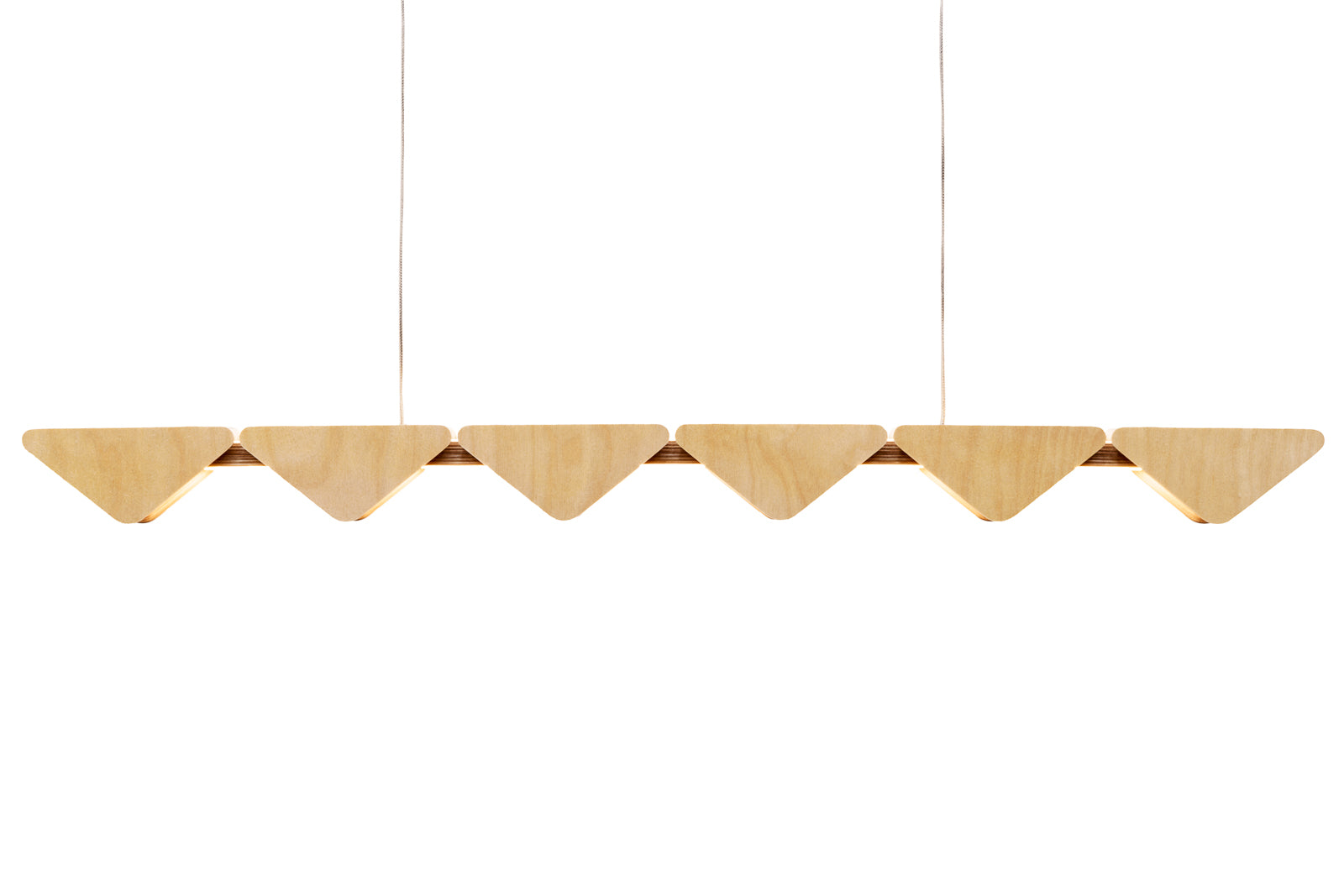

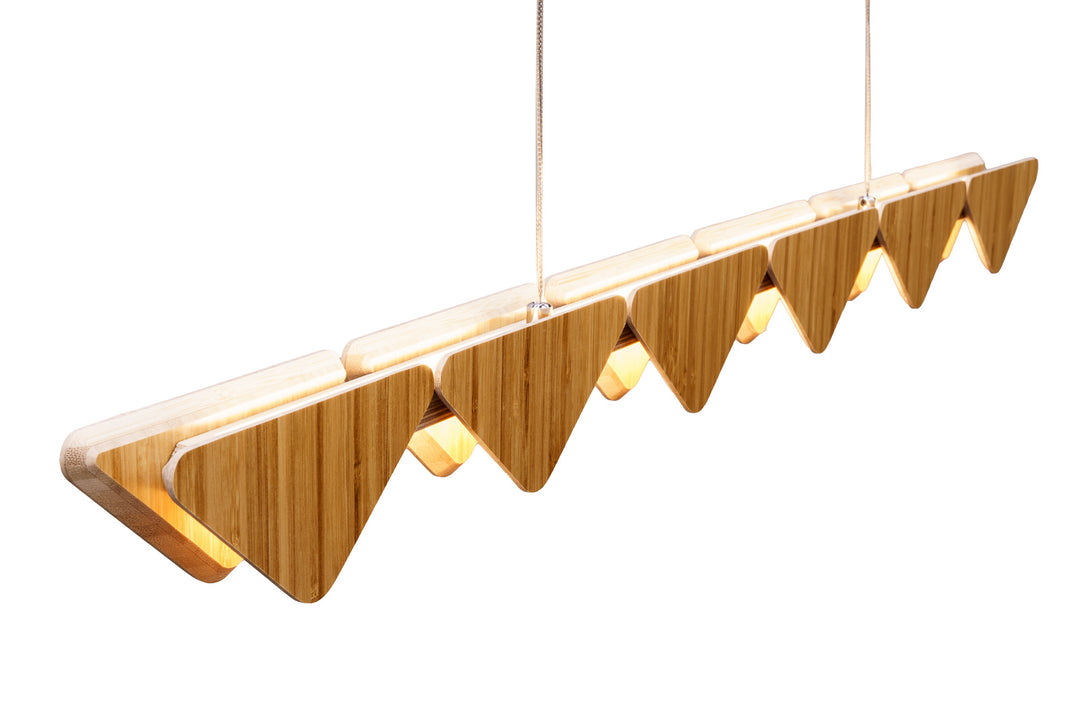

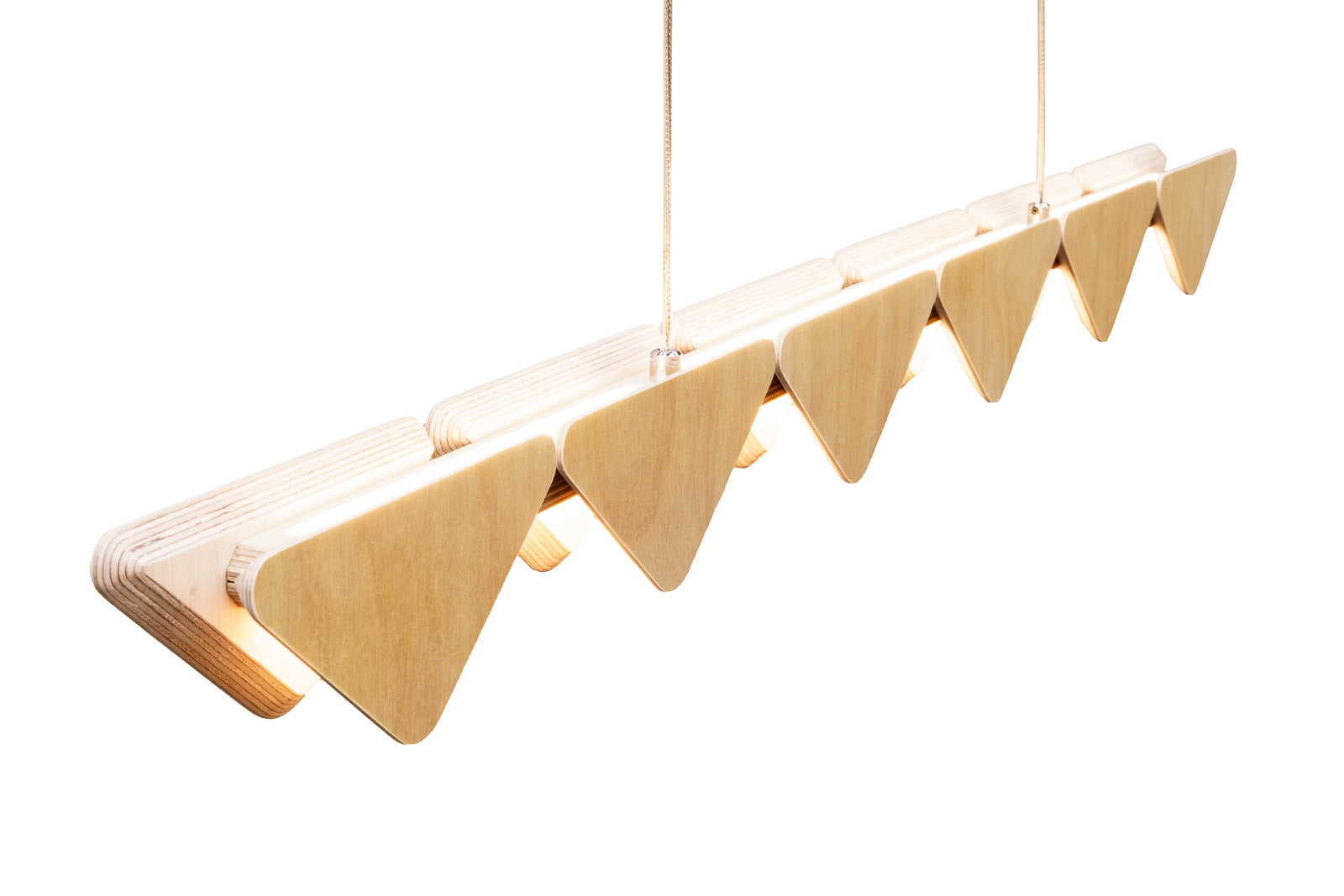

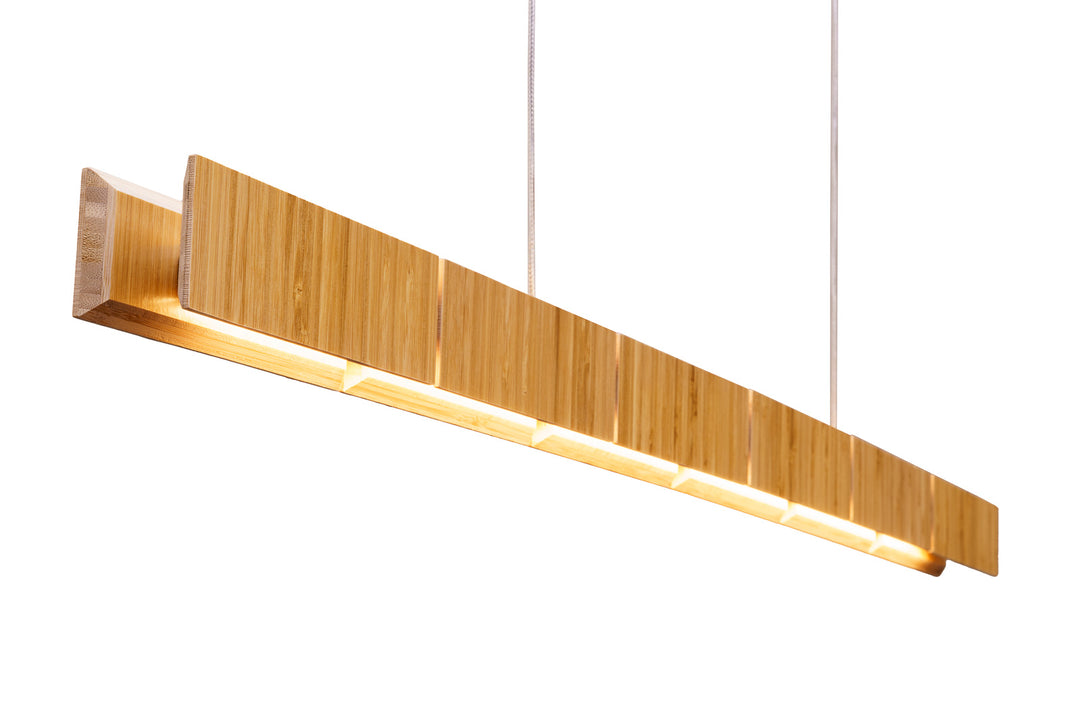

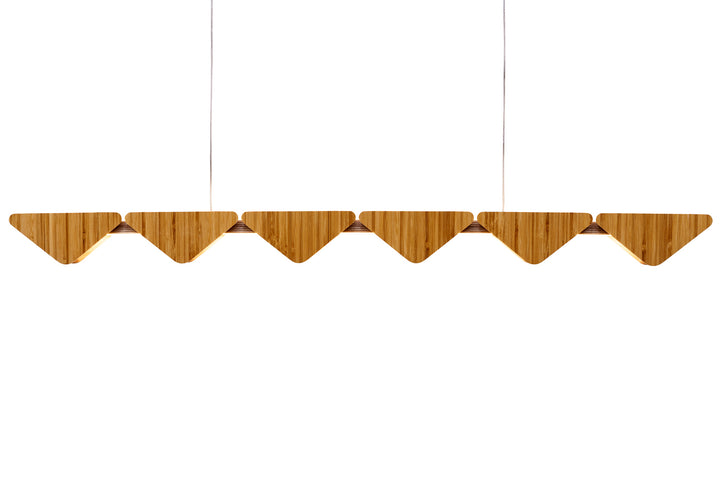

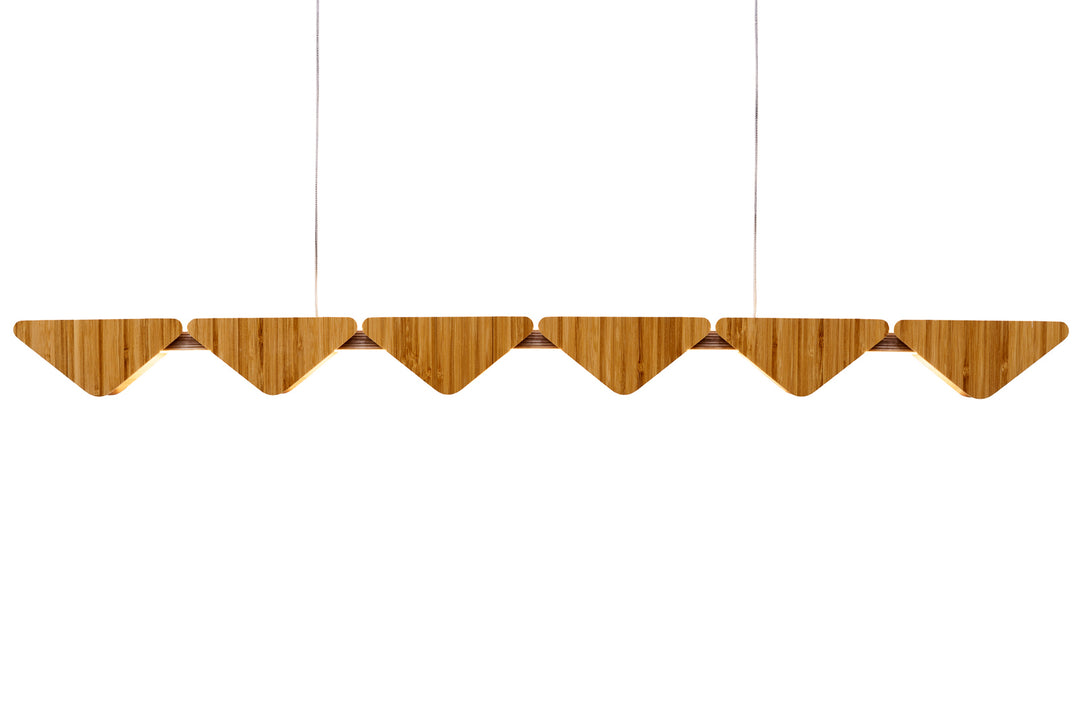

Mt Karioi Bar

We utilize 10mm veneer ply for the form pieces and structural elements of the LED Bar frame.

For heat dissipating reasons the LED strip light is housed in a aluminium channel. This effectively dissipates majority of the heat created from the LED's. Increasing the longevity of the LED's.

The cable has a clear PVC coating and wire mesh on the inside, housing a 2 core cable.

Brown cable wire = Positive

Blue cable wire = Negative

Cable locks are used to lock the two cables into the LED light bar. The housing enclosure or steel bracket have adjustable cable locks.

• 3k Warm White
• Bottom Strip - 24.5 Watts per meter
• Top Strip - 9.6 Watts per meter
• 2000 Lumens per meter
• 24 Volt 60W Dimmable transformer included
• Hanging cable length is 3 meters per side
• Life Span - 50,000 hours
• Weight 2kg

• 1500 L x 50 H x 50 D
• 1800 L x 50 H x 50 D
• 2000 L x 50 H x 50 D
• 2200 L x 50 H x 50 D
• 2400 L x 50 H x 50 D

• Plywood retrofittable enclosure for transformer or a circular steel ceiling mountable adjustable bracket.
• 24V 60 Watt Dimmable Transformer
• LED Raglan Light Bar
• 6x 6G Phillips ceiling screws and anchors
• All electrical fittings provided are for installation by a qualified electrician.

*Note light or dimming switches are not included, see additional tab for the type of light or dimming switch required.

• LED Light Bar comes assembled.
• All electrical fittings provided are for installation by a qualified electrician.
• Transformer has the option of being concealed in the ceiling or screwed to the ceiling in the provided plywood housing.
• One cable powers the bottom strip of led’s and the other wire powers the top strip of led’s.
• Brown cable wire = Positive
• Blue cable wire = Negative
• 5 year Warranty for transformer and LED strip
