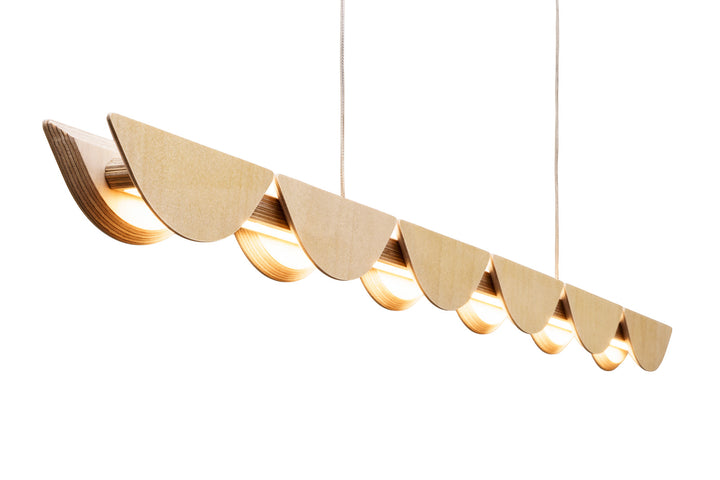

Name: Raglan Sand Bar
Brand: Formation Lights
Price: 1112.99 NZD
Availability: InStock

$1,112.99

Tax included.

Free New Zealand shipping

Low stock - 10 items left
Inventory on the way

This light bar takes its shape from the gentle, rolling curves of Raglan’s iconic sandbar, where shifting tides create smooth, wave-like patterns that draw surfers from around the globe. But beneath its beauty lies power—the sandbar is notorious for treacherous currents and shifting shallows that make it one of the most dangerous harbour entrances in New Zealand for boaters.

We utilize 10mm veneer ply for the form pieces and structural elements of the LED Bar frame.

For heat dissipating reasons the LED strip light is housed in a aluminium channel. This effectively dissipates majority of the heat created from the LED's. Increasing the longevity of the LED's.

The cable has a clear PVC coating and wire mesh on the inside, housing a 2 core cable.

Brown cable wire = Positive

Blue cable wire = Negative

Cable locks are used to lock the two cables into the LED light bar. The housing enclosure or steel bracket have adjustable cable locks.

3k Warm White
Bottom Strip - 24.5 Watts per meter
Top Strip - 9.6 Watts per meter
2000 Lumens per meter
24 Volt 60W Dimmable transformer included
Hanging cable length is 3 meters per side
Life Span - 20,000 hours
Weight 2kg

1500 L x 50 H x 50 D
1800 L x 50 H x 50 D
2000 L x 50 H x 50 D
2200 L x 50 H x 50 D
2400 L x 50 H x 50 D

Plywood retrofittable enclosure for transformer or a circular steel ceiling mountable adjustable bracket.
24V 60 Watt Dimmable Transformer
LED Raglan Light Bar
6x 6G Phillips ceiling screws and anchors
All electrical fittings provided are for installation by a qualified electrician.

*Note light or dimming switches are not included, see additional tab for the type of light or dimming switch required.

LED Light Bar comes assembled.
All electrical fittings provided are for installation by a qualified electrician.
Transformer has the option of being concealed in the ceiling or screwed to the ceiling in the provided plywood housing.
One cable powers the bottom strip of led’s and the other wire powers the top strip of led’s.
Brown cable wire = Positive
Blue cable wire = Negative
Download Catalogue

Cohesive

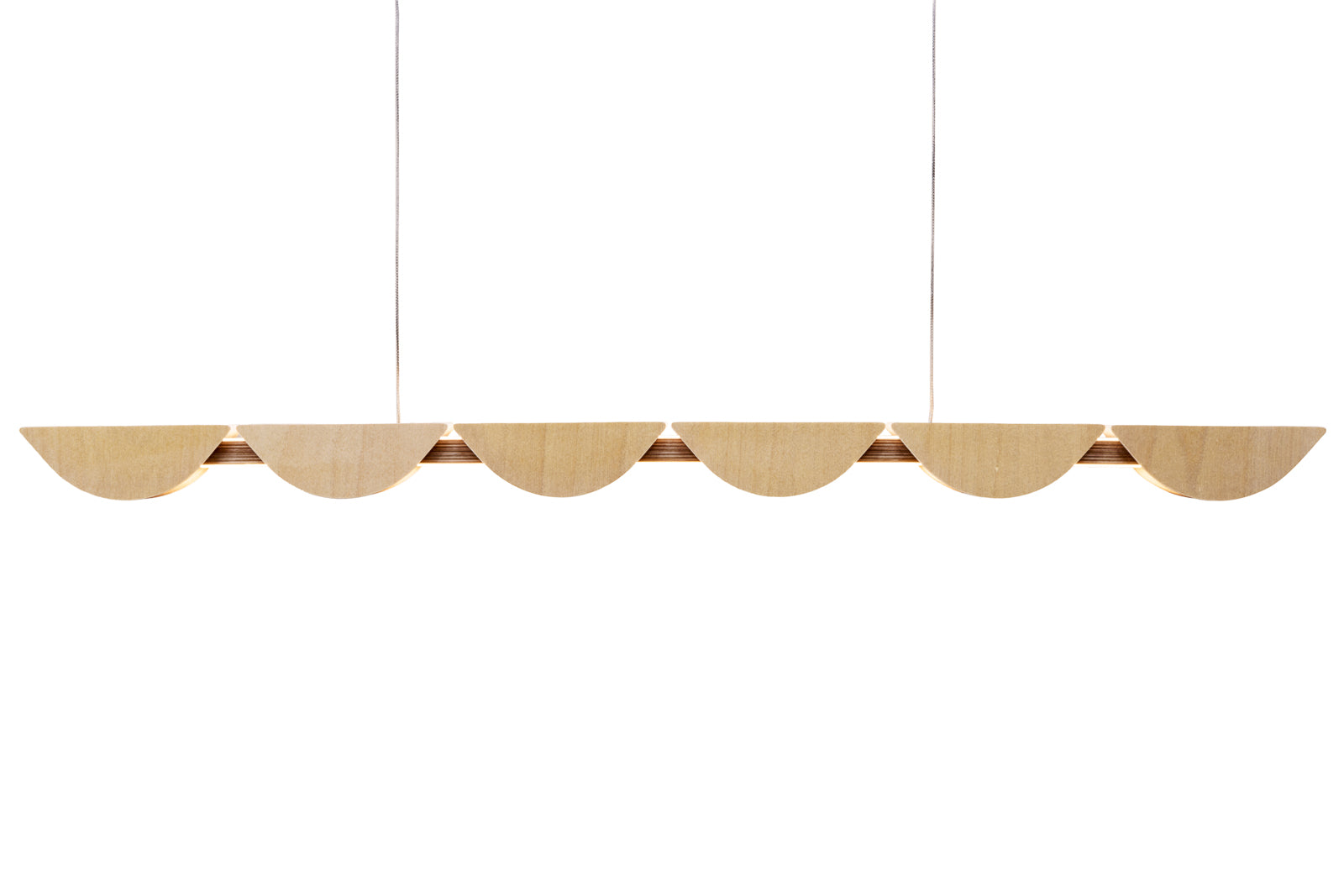

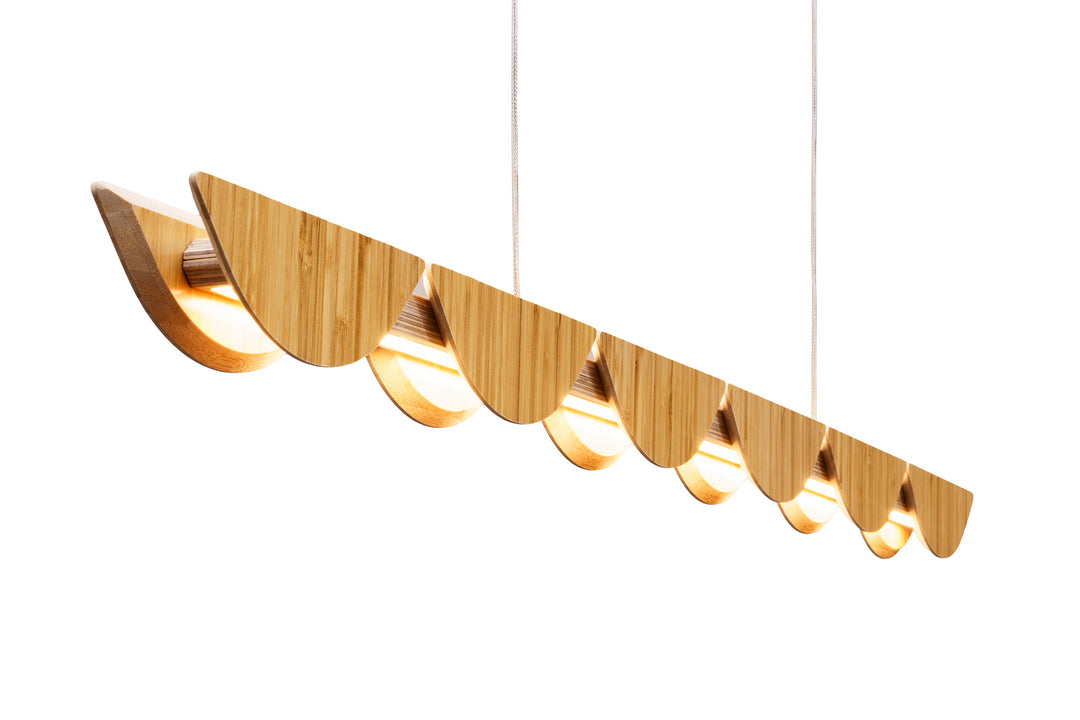

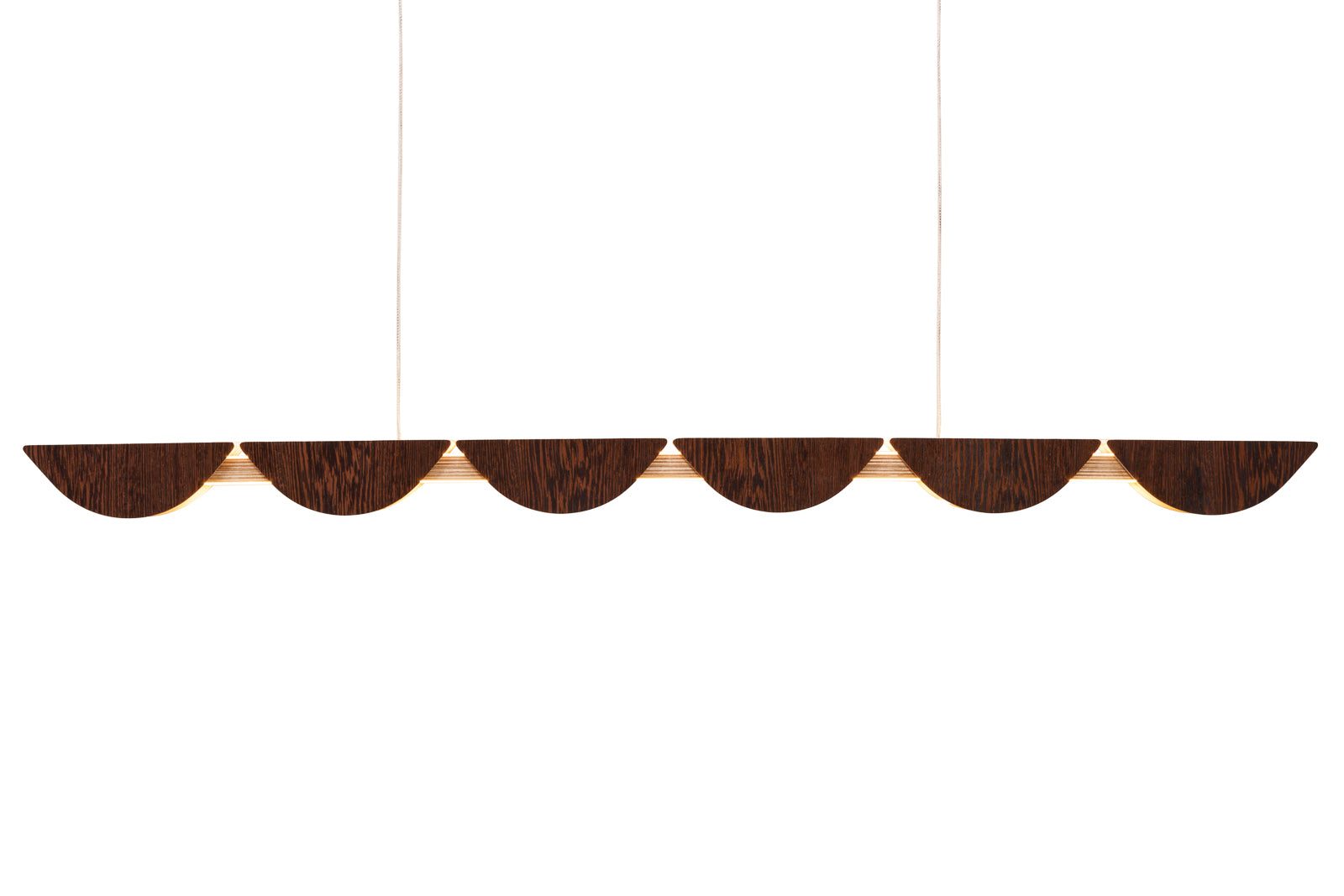

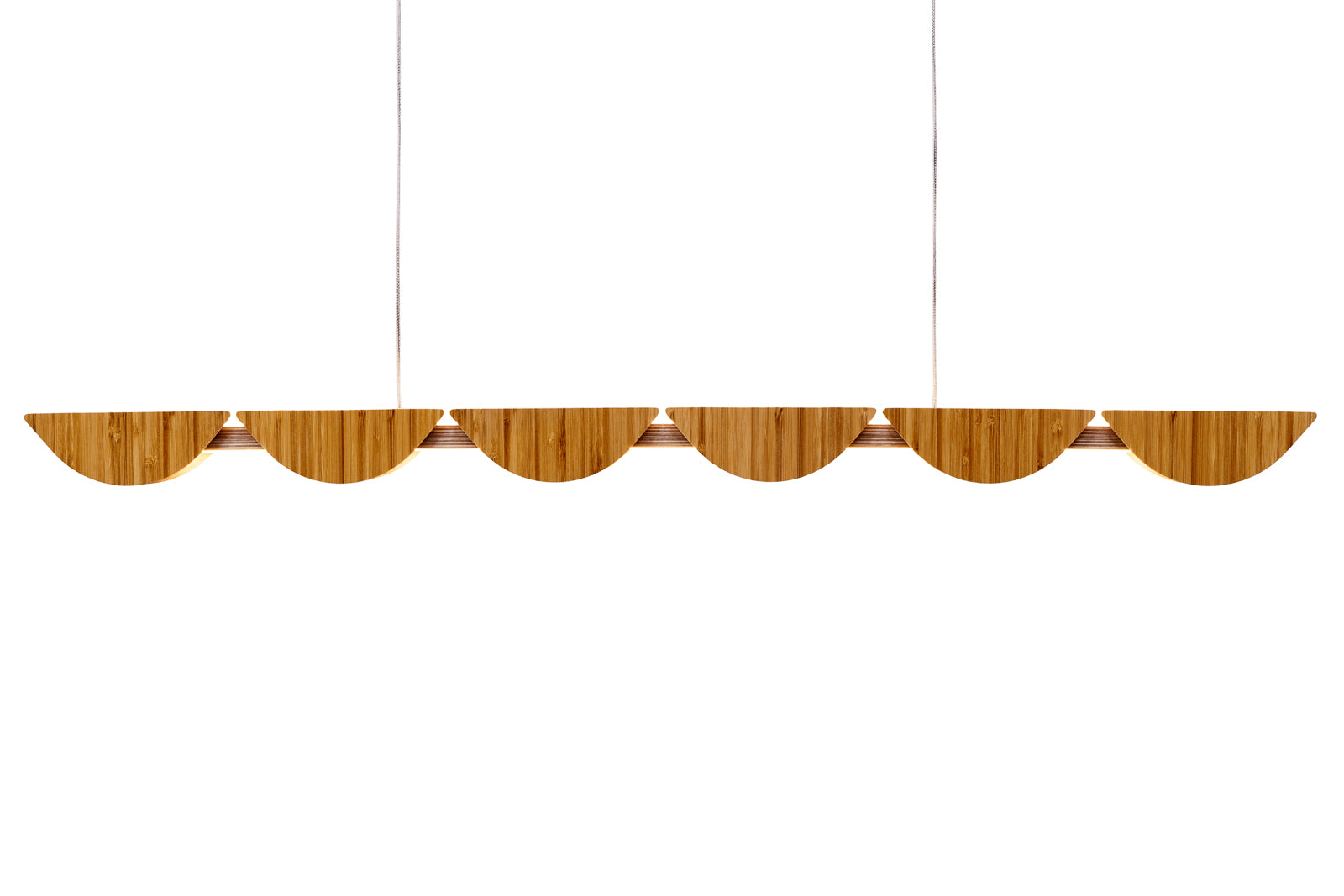

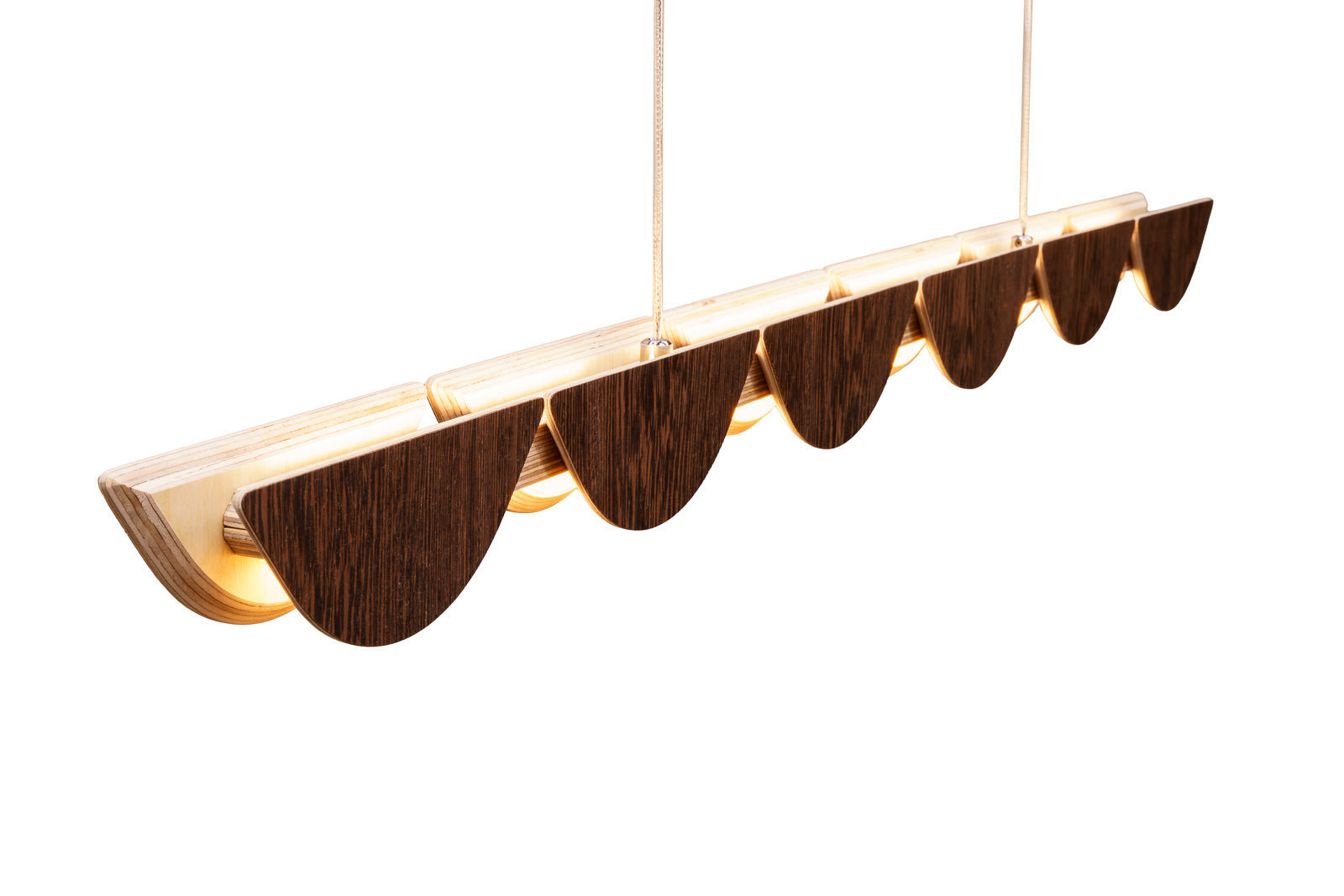

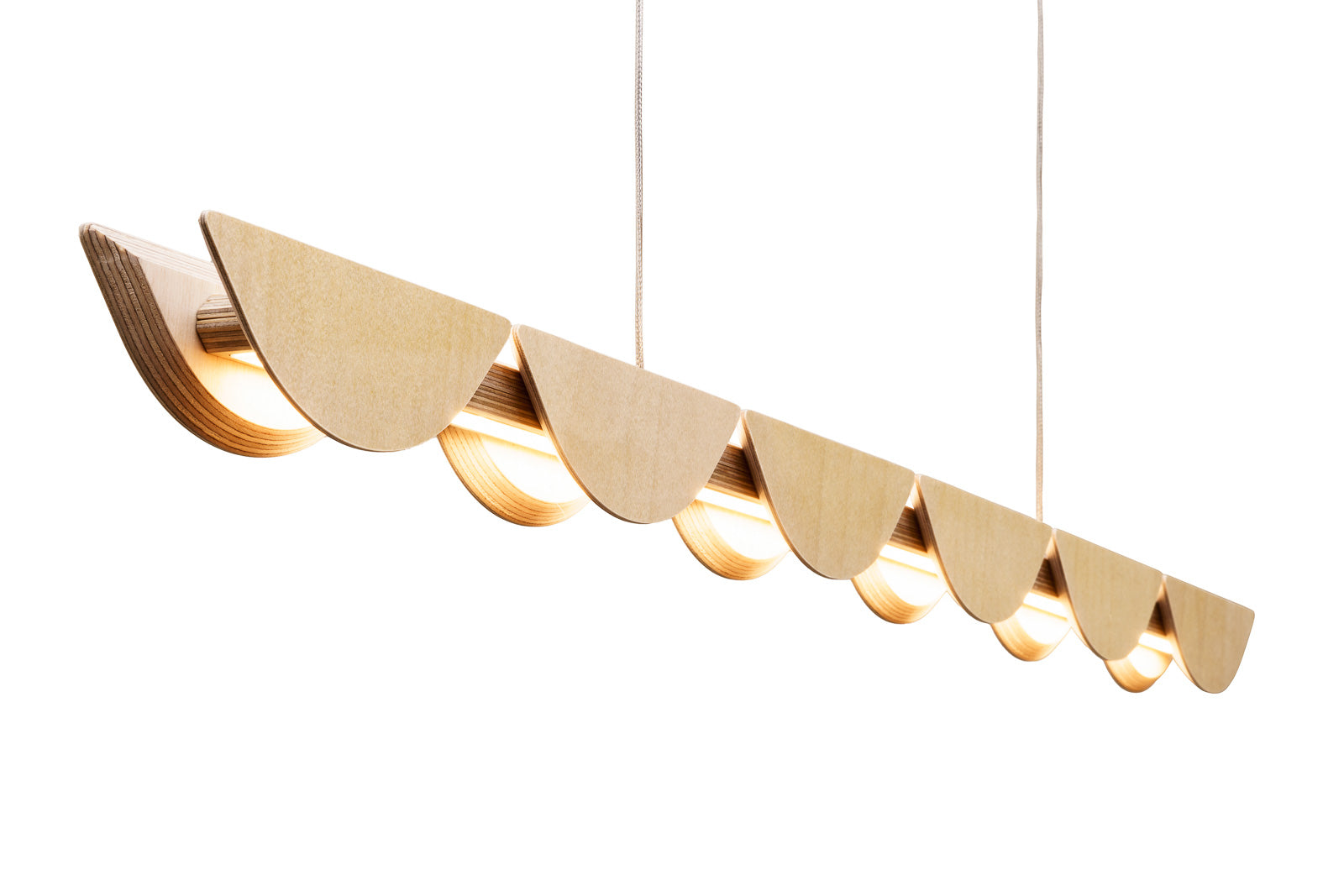

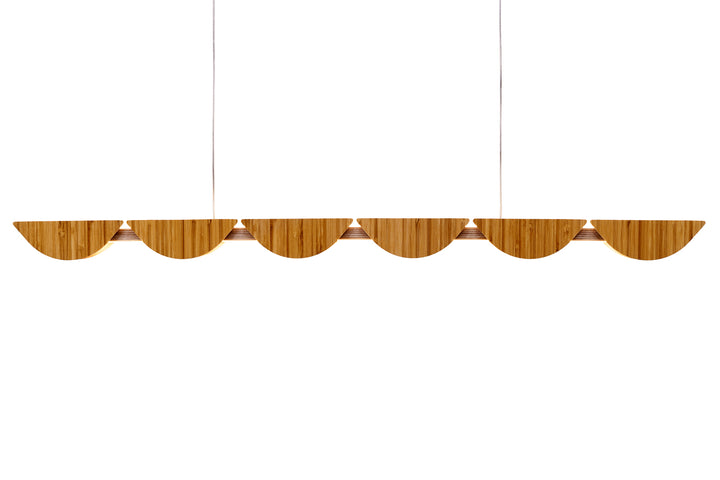

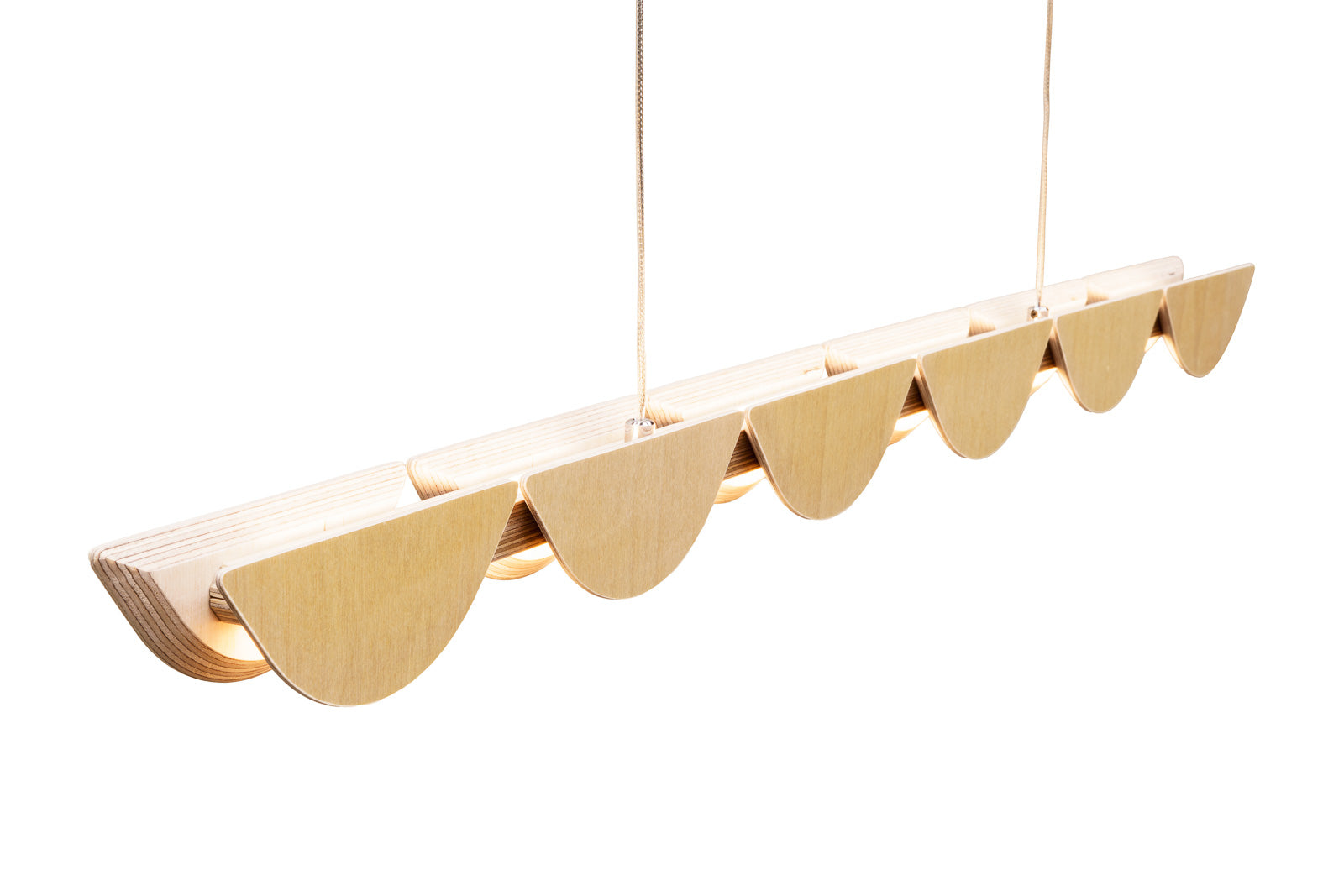

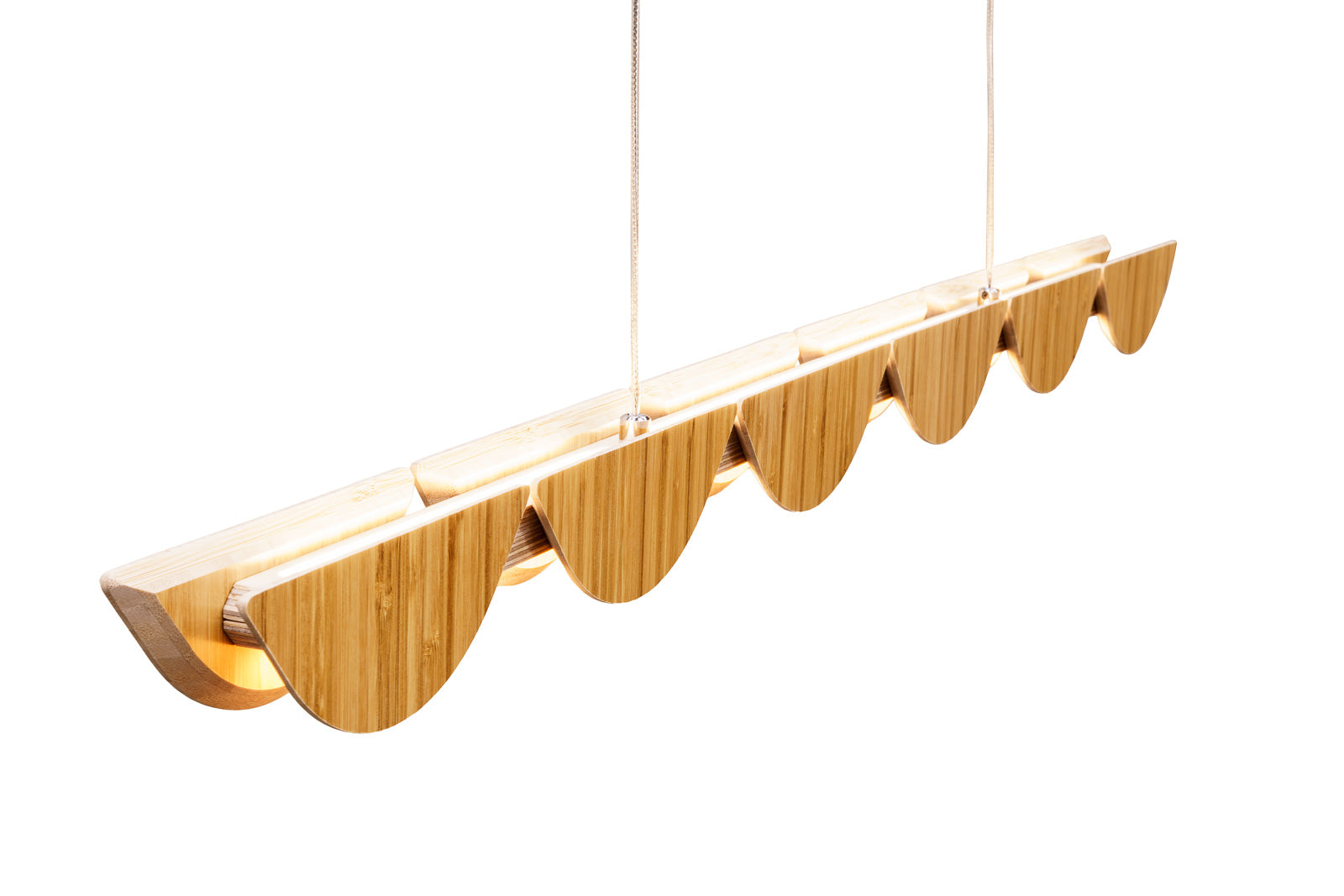

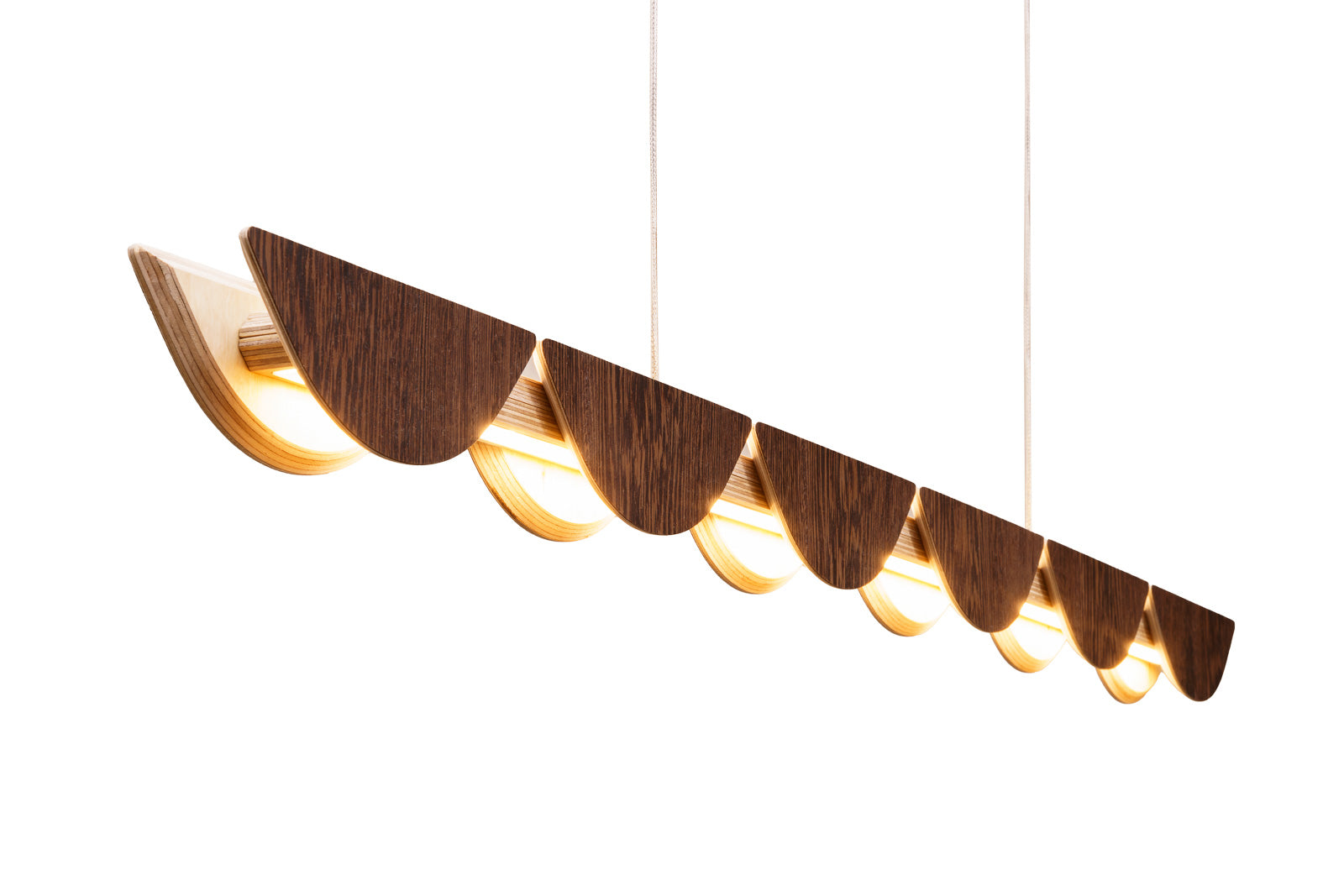

Available in three different natural veneer wood finishes. Satin Birch, Wenge and Bamboo. Tones to match any interior setting.

Functional

This LED light bar is specifically designed to soften glare while giving off a warm, even glow. Providing the perfect ambient task lighting for kitchens, dining spaces, or cafes.

Timeless

The Raglan collection of LED bar lights is made to last beyond trends, with shapes inspired by nature. Each design is derived from the Raglan coastline, from waves rolling onto the shore to mountains on the horizon, with every piece telling its own story.

NZ Made

Manufactured right here in New Zealand

SUSTAINABILITY

Sustainably designed and crafted

EXPERIENCE

Connect with nature through design
